Composing plots

ChainsMakie allows you to compose custom summary plots by passing two or more of the plotting functions exported by ChainsMakie to plot.

using ChainsMakie, CairoMakie
import MCMCChains: Chains
chains = Chains(randn(300, 3, 4), [:A, :B, :C])

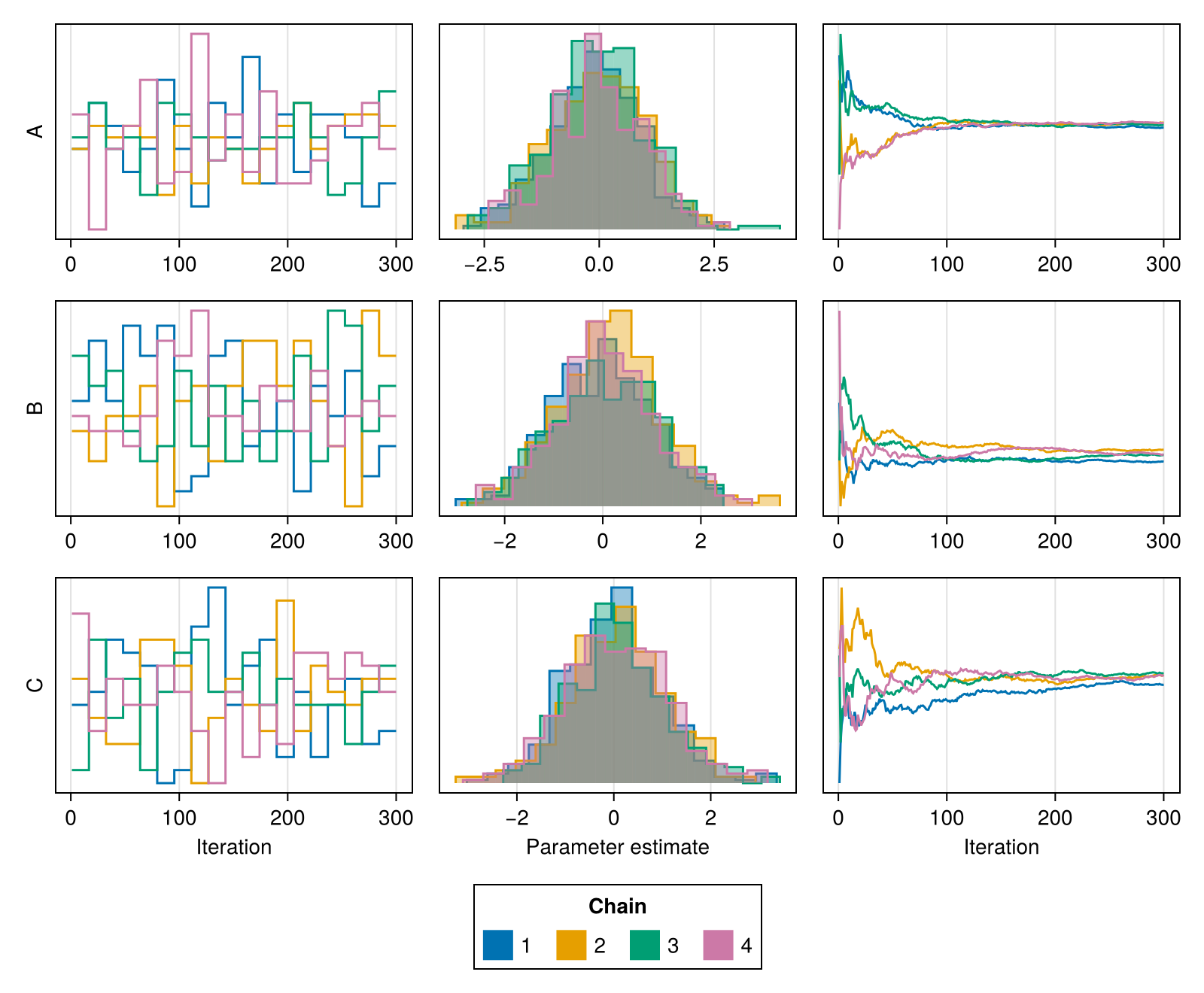

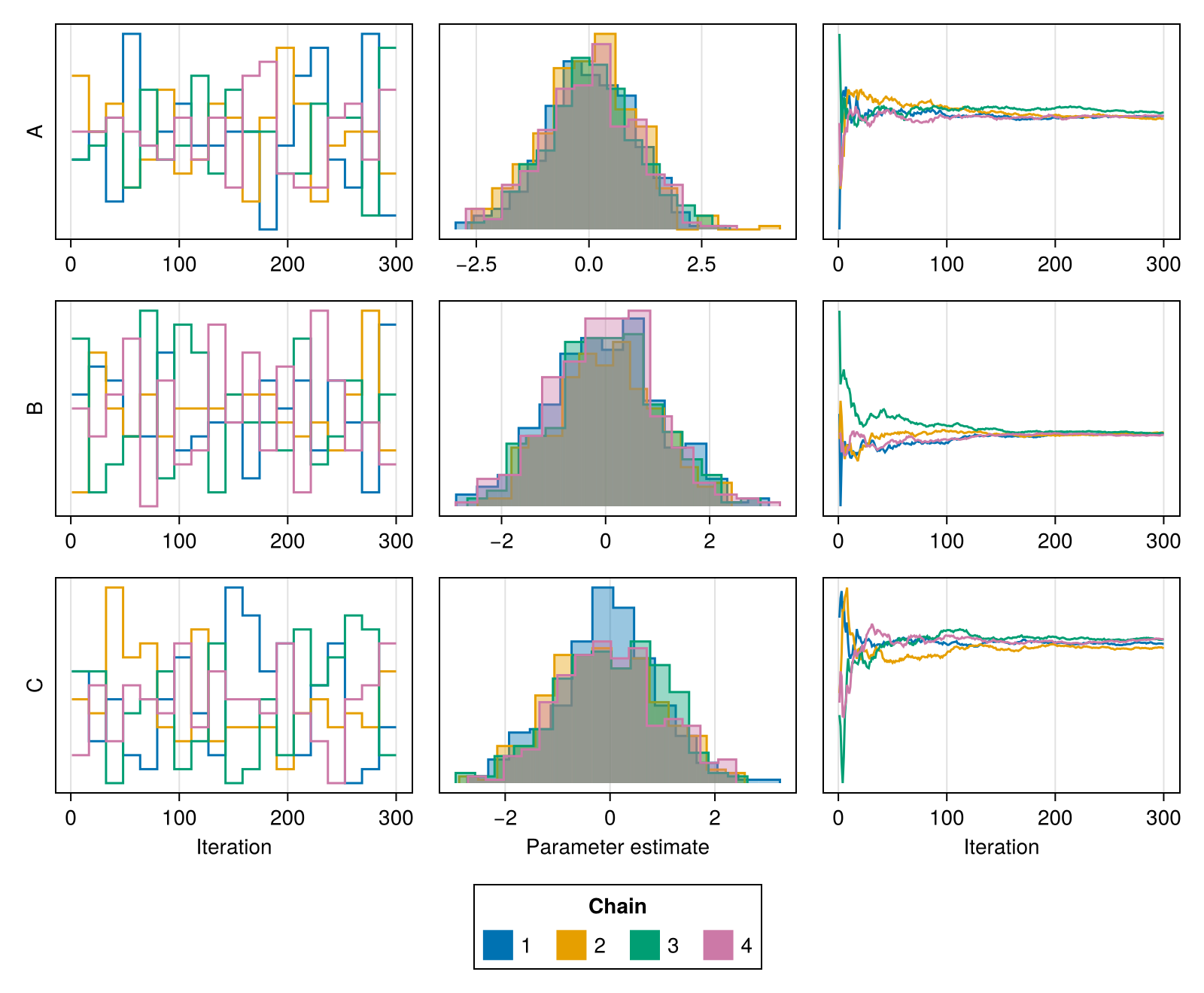

plot(chains, trankplot!, chainshist!, meanplot!)

All functions passed must be mutating versions of the plotting functions, i.e., they must end in !. In addition, for density and hist it is currently required to pass their specific chains-prefixed recipes.

For a list of the supported functions, see plot.
